My Printer Stand Jukebox Conversion Page 2

Now for the stand.

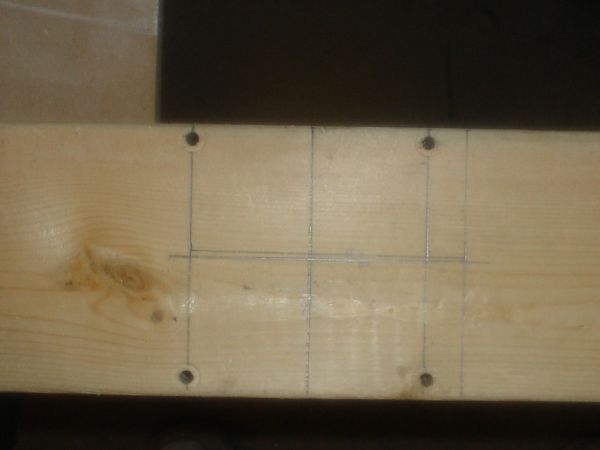

measure the holes on the ELO touchscreen. 3" center of hole to center of hole. Easy.

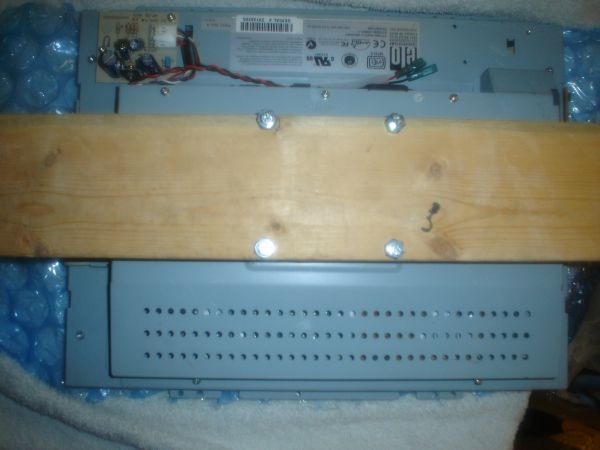

then to mount the 2x4 with 2" M4 screws. That was the only size ACE had. So I had to put a nut on the back side of each screw for shim.

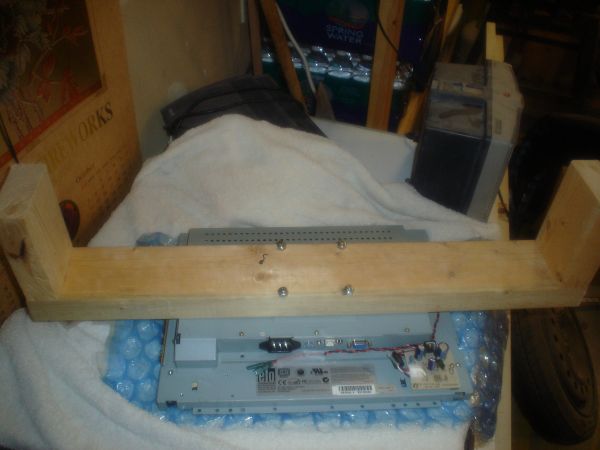

I added the legs of the stand prior to attaching the touchscreen.



Just snug tightened the screws.

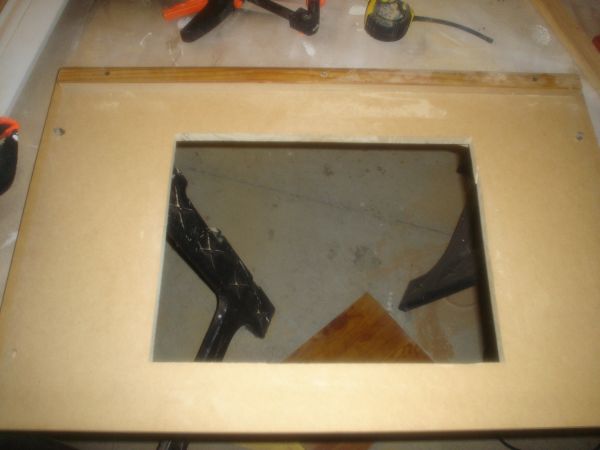

Here is the hole cut into the top of the printer stand.



Then insertion of the stand w/touchscreen and a test fit with the top

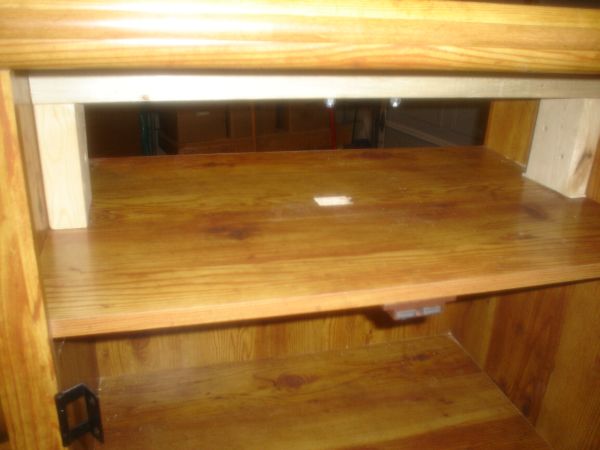

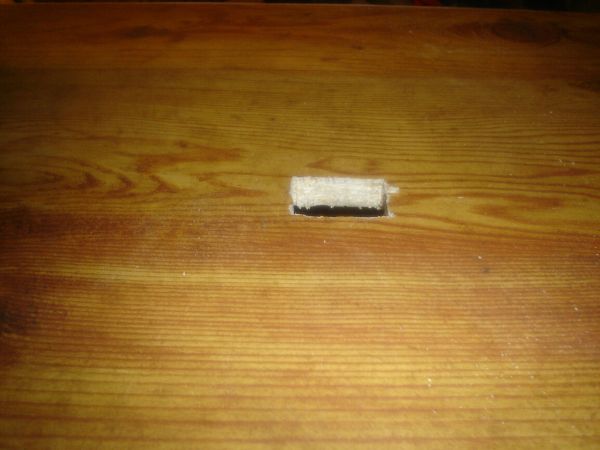

I then removed the top and stand again to cut a service hole in the middle shelf of the printer stand for wires. I plan on buying a nice plastic piece to fit the hole later.

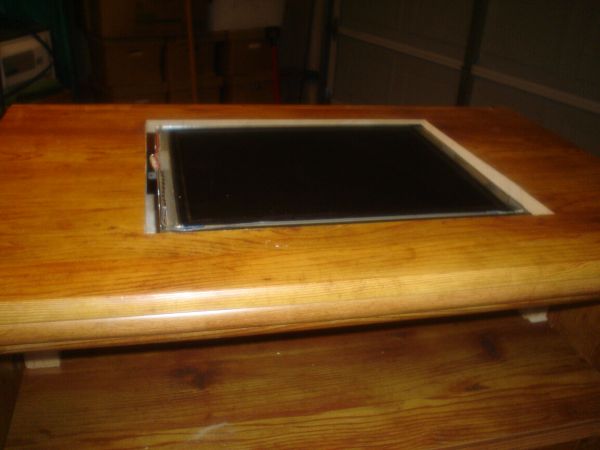

Placing the top back on ....



Chow time! By this time I have about 1 hour into this.
